Quick answer

The arrow on a disposable HVAC filter should point in the direction air travels through the return toward the air handler, blower, or furnace—not toward the room. Turn the system off, read equipment and slot labels, photograph the old filter before removal, and match exact dimensions and approved performance. If no direction is clear, the slot is damaged, or the filter does not slide in easily, stop and ask an HVAC technician.

This guide is for U.S. residential forced-air systems. Equipment, filter locations, and approved filter resistance vary. Follow the system manufacturer and HVAC professional.

Way Service Ltd. Austin

AustinTravis CountyTexas

2305 Donley Dr #102, Austin, TX 78758, USA

Understand the airflow arrow

Return air leaves occupied rooms through return grilles and travels toward the equipment. The filter arrow follows that travel. At a return grille, it generally points into the duct. At an equipment cabinet, it generally points toward the blower side.

Do not use the direction of printed text, wire mesh appearance, or the way a previous filter was installed as proof. Previous installation can be wrong.

Chills On Wheels Heating & Air Contractors, Inc.

JacksonvilleDuval CountyFlorida

5011 Gate Pkwy Bldg 100, Suite 100, Jacksonville, FL 32256, USA

Locate the filter safely

Common locations include a large return grille, a filter rack beside an air handler or furnace, or an approved cabinet. Some homes have multiple filters; others must not use filters in more than one location.

Turn the system off using normal controls and follow equipment instructions. Do not open electrical or blower panels, reach past guards, or enter an unsafe attic or crawlspace.

Confirm direction before removal

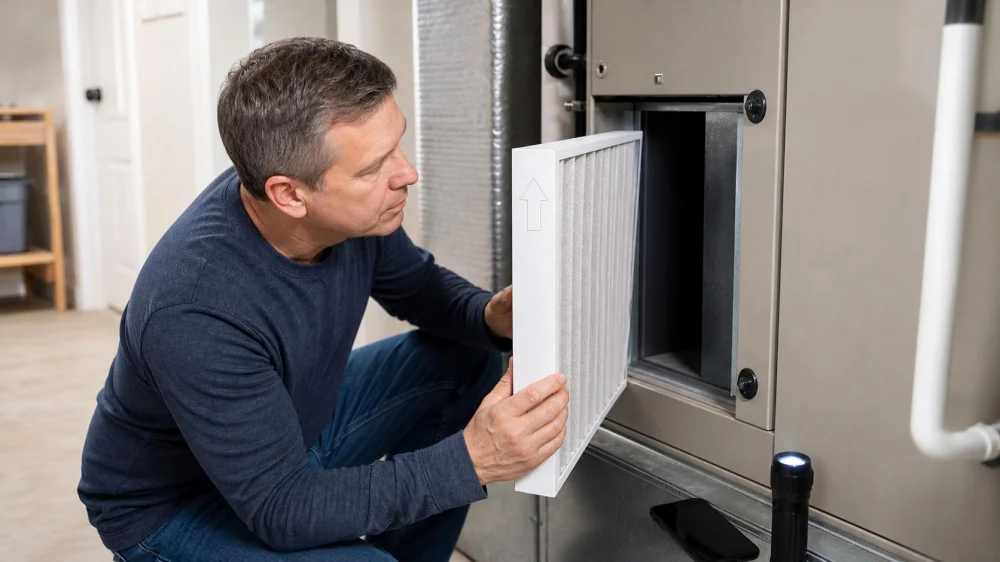

Look for arrows on the filter, rack, cabinet, duct, or manual. Trace the return duct toward the equipment without dismantling anything. Take a wide photo showing slot and nearby equipment, then a close photo of the arrow.

Record the nominal and actual dimensions, model information, and approved filter type. A filter with a higher rating is not automatically better if it restricts airflow beyond system design.

Install without forcing

1. Verify the system is off.
2. Remove the old filter slowly to contain dust.
3. Bag it without shaking.
4. Check the empty slot for visible damage only.
5. Orient the new arrow toward the equipment airflow.
6. Slide it in gently without bending.
7. Close the grille or access cover securely.
8. Restore normal operation and note the date.

Do not vacuum deep inside the cabinet or operate the system without its required cover.

Stop for fit or system problems

Call a technician for a crushed rack, gaps around the filter, missing cover, repeated filter collapse, unusual dust bypass, water, mould-like growth, burnt odour, or uncertainty about multiple filter locations.

If the system behaves differently after replacement—new noise, weak airflow, short cycling, icing, or a fault message—turn it off as appropriate and obtain service. Do not stack filters or cut one to fit.

Filter replacement checklist

• Use normal controls to turn the system off.
• Confirm return-to-equipment airflow.
• Photograph old orientation before removal.
• Match exact approved size and type.
• Point the arrow toward the blower or air handler.
• Never force, fold, cut, or stack filters.
• Close every approved cover.
• Record date and report performance changes.

Limitations and important notes

• Ductless mini-splits, window units, portable units, and specialised media cabinets use different filters.
• Filter change intervals depend on system, product, use, pets, construction dust, and professional guidance.
• Wet or contaminated filters require source diagnosis, not only replacement.
• People with respiratory conditions should follow healthcare guidance for exposure and protective equipment.
• Do not access equipment in standing water or near damaged wiring.

Frequently asked questions

Does the arrow point up or down?

It points with airflow, not a universal compass direction. Determine where return air enters the equipment.

What if the old filter has no arrow?

Use equipment documentation and slot labels or ask a technician. Do not guess from dirt alone.

Can I use two filters?

Only if the system is designed for it. Stacking can restrict airflow.

Why does my filter bend?

Wrong size, rack damage, excess restriction, or system issues may contribute. Have recurring deformation assessed.

Should metal mesh face the blower?

Construction varies. Follow the manufacturer's airflow arrow rather than a generic mesh rule.

Sources and evidence notes

The method reflects standard forced-air filtration: install media in the marked airflow direction, match system-approved size and resistance, and preserve cabinet closure. Manufacturer instructions and HVAC technicians provide equipment-specific requirements.

Photograph the correct orientation

With the system off, photograph the filter slot and every visible airflow marking. Confirm the return side and equipment side, then buy the exact approved size and type. After installation, save one photo showing the new arrow so the next replacement does not depend on memory.
