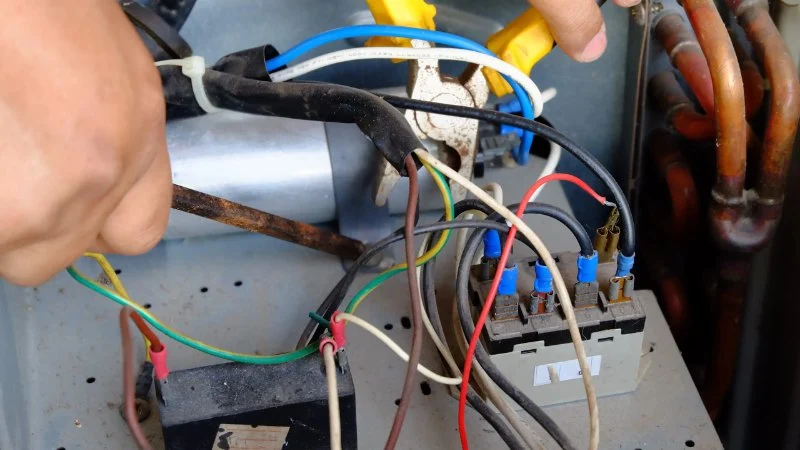

How to Fix an Air Conditioner with Faulty Wiring

Air conditioning problems can be frustrating, especially when they are caused by faulty wiring. Fortunately, diagnosing and fixing electrical issues with your AC unit is possible with the right knowledge and tools. In this guide, we’ll walk you through the steps of identifying faulty wiring in your air conditioner and how to fix it to restore your cool comfort. However, if you're not comfortable working with electrical systems, it’s always advisable to call a professional to avoid the risk of injury or further damage.

• 1. Check the Power Supply
• 2. Inspect the Wiring for Visible Issues
• 3. Test Wires and AC Components
• 4. Replace Damaged Wires and Connections
• 5. Call a Professional If Necessary

1. Check the Power Supply

Before diving into wiring repairs, it's essential to ensure that the air conditioner is receiving power. Sometimes, a faulty breaker or blown fuse can cause the system to stop working, and it may seem like a wiring issue when it's not. Here’s how to check:

A/C 4-AMERICA, LLC.

Jensen BeachMartin CountyFlorida

837 NE Dixie Hwy Unit C, Jensen Beach, FL 34957, USA

1.1 Reset Circuit Breaker

Locate the circuit breaker for your air conditioner and check if it has tripped. If it has, reset it by flipping the switch to the "off" position and then back to "on." If the breaker trips again, it could indicate an underlying electrical issue, such as faulty wiring or an overcurrent problem.

Optimal Air Solutions

TomballHarris CountyTexas

12023 Holderrieth Rd, Tomball, TX 77375, USA

1.2 Inspect the Fuse

If your AC unit uses fuses, inspect them for any signs of burning or damage. A blown fuse may be the reason your air conditioner isn’t working. Replacing the fuse is a simple task, but ensure that you replace it with a fuse of the correct amperage to avoid damaging the unit further.

2. Inspect the Wiring for Visible Issues

After confirming that your AC is receiving power, it's time to inspect the wiring. Look for any visible signs of wear, fraying, or damage in the electrical connections. Pay special attention to the following areas:

2.1 Wiring Near the Compressor

The compressor is one of the most crucial components of your air conditioner. If the wiring near the compressor is damaged or exposed, it could cause the AC to malfunction. Ensure that all wires are intact and properly connected.

2.2 Connections to the Thermostat

Check the connections between the thermostat and the control panel. Loose or damaged wires here can prevent the thermostat from communicating with the rest of the system, resulting in an unresponsive AC unit.

3. Test Wires and AC Components

Once you've inspected the wiring, it's time to test the components to identify the faulty parts. Use a multimeter to check for continuity in the wires. Here’s how:

3.1 Testing the Thermostat

Set the multimeter to the continuity mode and test the thermostat’s terminals. If you don’t get a reading, the thermostat could be malfunctioning, and the wiring may need to be replaced or repaired.

3.2 Testing the Compressor

Test the compressor’s wiring with the multimeter to check for voltage. If there’s no voltage reading, the wiring could be faulty, or the compressor might need to be replaced. In either case, addressing this issue is essential to get your AC running again.

4. Replace Damaged Wires and Connections

If you’ve identified any damaged wires, it’s time to replace them. Here’s how to do it safely:

4.1 Cut and Strip the Wires

Using wire cutters, carefully cut the damaged section of the wire. Strip back the insulation on the new section of wire to expose the copper, ensuring that you don’t damage the wire itself.

4.2 Connect the New Wire

Use wire nuts or electrical connectors to attach the new wire to the existing wiring. Ensure that the connections are secure and insulated to prevent shorts or further damage. Double-check the connections to ensure they’re tightly fastened.

4.3 Test the System Again

After replacing the damaged wires, test the air conditioner again. If everything is working properly, the system should be cooling the air once more. If the issue persists, there may be a deeper electrical fault that requires professional attention.

5. Call a Professional If Necessary

If you’ve followed all the steps above and your air conditioner is still not functioning correctly, it may be time to call in a professional. Faulty wiring can sometimes be complex and dangerous, and attempting further repairs without proper knowledge could lead to serious issues. A licensed HVAC technician can diagnose and repair the problem safely, ensuring that your air conditioning system runs smoothly.

Dealing with faulty wiring can be a daunting task, but with the right tools and knowledge, you can resolve the issue yourself. If you're unsure or uncomfortable with electrical work, don’t hesitate to contact a professional for help. For expert advice and more resources on air conditioning maintenance and repairs, visit Ac Fix for trusted services and product recommendations.
